試驗室CGJ型密封式化驗制樣粉碎機技術參數 T

適用地質、礦山、冶金、煤炭、電力、化工、建材等行業科研單位、院校試驗室內無污染進行物料粉碎，制樣化驗，機內帶自動除塵器，具有噪音小、無粉塵、操作方便。本產品由原地礦部唯一指定企業生產，執行行業標準。

It serves to crush materials and prepare samples without pollution in laboratories of institutes in the trade of geology, mine, metallurgy, coal, chemical industry and building materials and so on. The machine contains an automatic dust remover.

CGJ、CGF型密封式系列化驗制樣粉碎機采用“壓緊料缽防松動裝置”輕便可靠。全密封式，無粉塵外溢，無需排風除塵。高頻震動研磨，粉碎效率高，粒度均勻，不混樣，無需篩分縮分。用戶可根據樣量選用不同品種；產品體積小，結構緊湊，不用安裝，低噪音<60分貝，可在任何場所工作。

CGJE、CGF77E密封式電動壓緊化驗制樣粉碎機實現了只用一個手指輕松點動就可完成壓緊—制樣粉碎—松開，全部過程操作簡單。

GJE、F77E密封式電動壓緊化驗制樣粉碎機采用最新“電動壓緊裝置”，該產品適應多向運動的特性，改變了通常的手動壓緊，密封性能好，更輕便，更人性化，國內首創。

CGJ、CGF Model Sealed Serial Laboratory Sampling Crusher adopting compact earthen bowl loosening proof device is light weight and reliable. With full enclosure and no dust spillover, it requires no air-exhausting and dusting system. It features high frequency vibration grinding, high efficiency of comminution with uniform particle size, no blending of samples and no need of screening and contraction. Users can select the different varieties of products based on the sample volume. The product is small in volume and compact in structure without need of installation as well as lower noise <60 decibel. It can be operational at any place.

CGJ、CGF Model Sealed Serial Laboratory Sampling Crusher can be operated by simply inching with a finger for completion of compaction- comminution for sample preparation – loosening , simple operation in the whole process..

GJE、F77E Sealed Electric Laboratory Sampling Crusher introduces the latest electric compaction device. The product is adaptive to the performance of multi-direction movement and changes the usual manual compaction mode. It is desirable in sealing performance, light in weight , more personalized and first-ever in China .

GJ、MZ型密封式粉碎制樣機技術參數 Sealed sampling crusher
型號規格 Model	料缽數 Cups Numbe	料缽材質 Material	裝料量 Capa.	裝料粒度 Feed size	粉碎時間 Crusher time	出料粒度 Output Size	電機功率 Power	質量 Weight
型號規格 Model	（個）		g/缽	mm	min	（目）	kw	kg
GJ-I（GJ-100）制樣機	1	錳鋼	100	<12	1-3	≤200	1.1	180
GJ-II制樣機	1	錳鋼	≤400	<25	1-3	≤200	1.1	200
GJ-A制樣機	1	剛玉	50	<5	≤230	≤200	0.5	90
GJ-AX制樣機	7	錳鋼	7×100	<12	2-5	≤200	1.1	350
GJ-B制樣機	3	剛玉	3×50	<5	20	≤400	1.1	160
1MZ-50振動磨	1	剛玉	50	<5	≤230	≤200	0.5	90
1MZ-100振動磨	1	錳鋼	100	<12	1-3	≤200	1.1	180
1MZ-200振動磨	1	錳鋼	≤200	<20	1-3	≤200	1.1	200
1MZ-400振動磨	1	錳鋼	≤400	<25	1-3	≤200	1.1	200
2MZ-100振動磨	2	錳鋼	2×100	<12	1-3	≤200	1.1	290
3MZ-50振動磨	3	剛玉	3×50	<5	20	≤400	1.1	160
3MZ-100振動磨	3	錳鋼	3×100	<12	1-3	≤200	1.1	300
3MZ-200振動磨	3	錳鋼	3×200	<20	2-5	≤200	1.1	350
4MZ-100振動磨	4	錳鋼	4×100	<12	1-3	≤200	1.1	310
5MZ-100振動磨	5	錳鋼	5×100	<12	2-5	≤200	1.1	330
6MZ-100振動磨	6	錳鋼	6×100	<12	2-5	≤200	1.1	340
7MZ-100振動磨	7	錳鋼	7×100	<12	2-5	≤200	1.1	350
MZL120振動磨	1	錳鋼	連續進出料	<15	120g/min	≤250	1.1	350

注：以上料缽材料可用錳鋼或剛玉定制

GJ、MZ型密封式化驗制樣粉碎機 Sealed sampling crusher

型號規格 Model	單位 Uite	GJ1×150 GJ1×300 GJ1×400	GJ2×150 GJ2×300	GJ3×150 GJ3×300	GJ4×150	GJ5×150	GJ6×150
進料粒度 Feed size	mm	≤5	≤5	≤5	≤5	≤5	≤5
出料粒度 Output size	(目)	≤240	≤240	≤240	≤240	≤240	≤240
粉碎時間 Crushing time	min	1-3	1-3	1-3	1-3	1-3	1-3
裝料重量 Capacity	g	1×150 1×300 1×400	2×150 2×300	3×150 3×300	4×150	5×150	6×150
制樣數 Sampling number	(個)	1	2	3	4	5	6
功率 Power	kw/v	1.1/380	1.1/380	1.1/380	1.5/380	1.5/380	1.5/380
外形尺寸 Overall dimensions	mm	710×550×960
質量Weight	kg	135 140 155	148 160	155 175	168	180	200

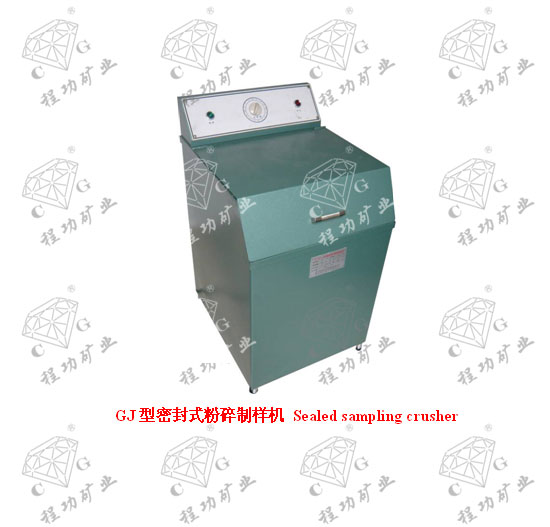

GJ型密封式粉碎制樣機 Sealed sampling crusher

型號 Model	一次制樣數 Cups umbe	裝料粒度 Feed size	裝料重量 Capacity	粉碎時間 Crusher time	出料粒度 Output size	功率 Power
型號 Model	（個）	mm	g/每缽	min	（目）	kw
CGJ100-1	1	<13	100×1	<2	≤200	1.1
CGJ100-2	2	<13	100×2	<2	≤200	1.1
CGJ100-3	3	<13	100×3	<2	≤200	1.5
CGJ100-4	4	<13	100×4	<3	≤200	1.5
CGJ100-5	5	<13	100×5	<3	≤200	1.5
CGJ100-7	7	<13	100×7	<3	≤200	1.5
CGJ200-1	1	<20	200×1	<3	≤200	1.5
CGJ200-2	2	<20	200×2	<3	≤200	1.5
CGJ200-3	3	<20	200×3	<3	≤200	1.5
CGJ200-4	4	<20	200×4	<3	≤200	1.5
CGJ400-1	1	<26	400×1	<3	≤200	1.5
CGJ400-2	2	<26	400×2	<3	≤200	1.5
CGJ400-3	3	<26	400×3	<3	≤200	1.5
CGJ400-4	4	<26	400×4	<3	≤200	1.5
CGJ500-1	1	<26	500×1	<3	≤200	1.5
CGJ1000-1	1	<26	1000×1	<3	≤200	1.5
CGJ(100/200)-Ⅰ	分別制	<13/<20	100/200	<2	≤200	1.5
CGJ(300/400)-Ⅱ	分別制	<23/26	300/400	<2	≤200	1.5
CGF77-1	1	<16	150×1	<2	≤200	1.1
CGF77-2	2	<16	150×2	<2	≤200	1.1
CGF77-3	3	<16	150×3	<2	≤200	1.5
CGF77-4	4	<16	150×4	<3	≤200	1.5
CGF77-5	5	<16	150×5	<3	≤200	1.5
CGF77-7	7	<16	150×7	<3	≤200	1.5

型號 Model	一次制樣數 Cups numbe	裝料粒度 Feed size	裝料重量 Capacity	粉碎時間 Crusher time	出料粒度 Output size	功率 Power
CGJE、CGF77E密封式電動壓緊化驗制樣粉碎機技術參數 Sealed sampling crusher
	（個）	mm	g/每缽	min	（目）	kw
CGJE100-1	1	<13	100×1	<2	≤200	1.1
CGJE100-2	2	<13	100×2	<2	≤200	1.1
CGJE100-3	3	<13	100×3	<2	≤200	1.5
CGJE100-4	4	<13	100×4	<3	≤200	1.5
CGJE100-5	5	<13	100×5	<3	≤200	1.5
CGJE100-7	7	<13	100×7	<3	≤200	1.5
CGJE200-1	1	<20	200×1	<3	≤200	1.5
CGJE200-2	2	<20	200×2	<3	≤200	1.5
CGJE200-3	3	<20	200×3	<3	≤200	1.5
CGJE200-4	4	<20	200×4	<3	≤200	1.5
CGJE400-1	1	<26	400×1	<3	≤200	1.5
CGJE400-2	2	<26	400×2	<3	≤200	1.5
CGJE400-3	3	<26	400×3	<3	≤200	1.5
CGJE400-4	4	<26	400×4	<3	≤200	1.5
CGJE500-1	1	<26	500×1	<3	≤200	1.5
CGJE1000-1	1	<26	1000×1	<3	≤200	1.5
CGF77E-1	1	<16	150×1	<2	≤200	1.1
CGF77E-2	2	<16	150×2	<2	≤200	1.1
CGF77E-3	3	<16	150×3	<2	≤200	1.5
CGF77E-4	4	<16	150×4	<3	≤200	1.5
CGF77E-5	5	<16	150×5	<3	≤200	1.5
CGF77E-7	7	<16	150×7	<3	≤200	1.5
